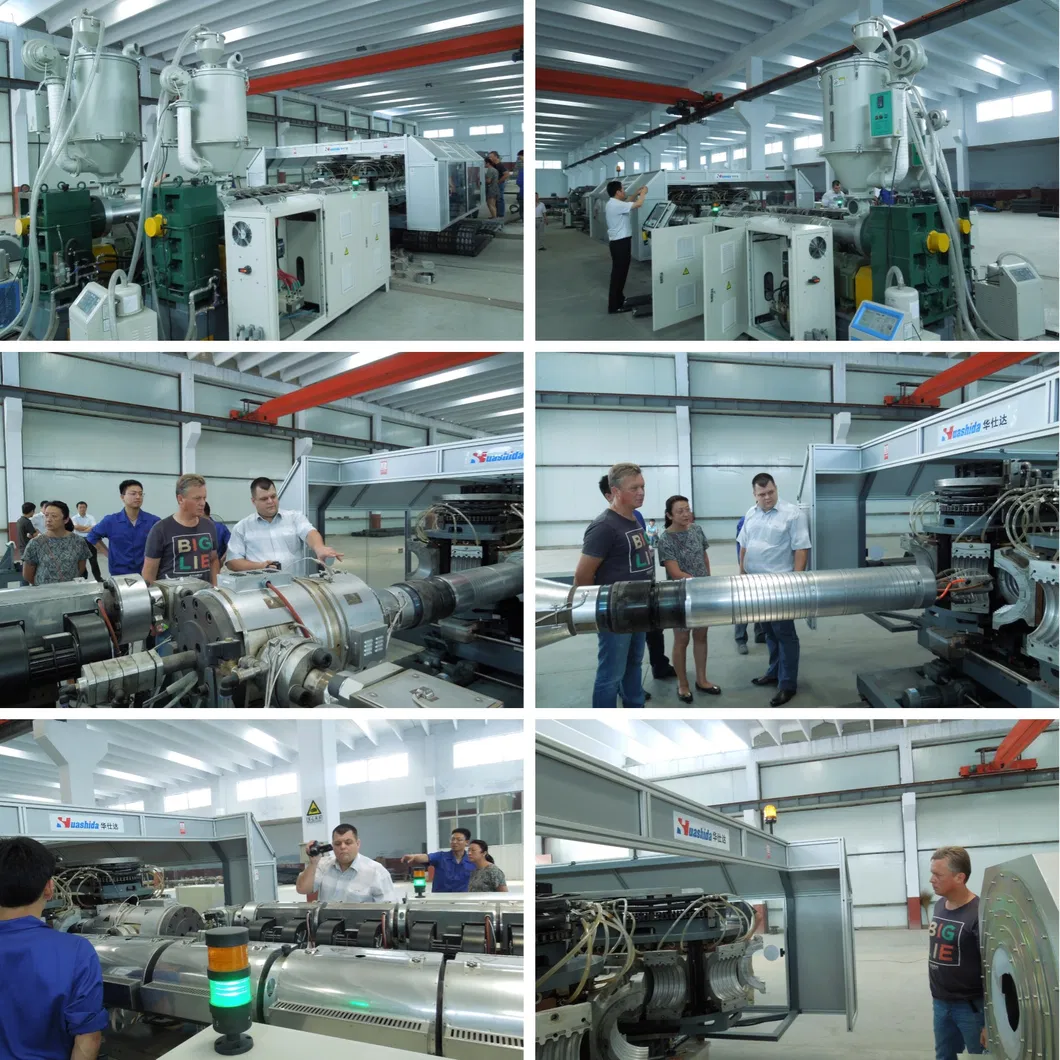

Automatic Double Wall Corrugated Pipe Production Line with CE Certification and 6m/Min Max Speed
Product Overview
This production line is a newly developed high-speed, water-cooled corrugated pipe manufacturing system, independently designed by our company based on advanced international technology. It uses polypropylene (PP), high-density polyethylene (HDPE), and other thermoplastic materials to produce both single-wall and double-wall corrugated pipes.
Featuring a unique structural design, the finished pipes are lightweight yet offer excellent impact resistance, corrosion resistance, and outstanding performance under both low and high temperature conditions. As a result, they are widely applied in urban drainage and water supply systems, underground seepage and drainage projects, building water supply and drainage, PEF applications, wire and cable protection, bridge steel cable sheathing, and agricultural irrigation systems.
Key Features
- Precision manufacturing, capable of producing pipes with diameters ranging from Φ10mm to Φ1200mm
- A wide range of high-output models available, with the highest production capacity reaching up to 1300kg/h
- Optimized energy-efficient design for cost-effective operation
- Robust construction to meet the demands of continuous industrial production
Production Line Configuration
A. Extruder System
Single-Screw Extruder: With a simple structure, easy maintenance, and cost-effectiveness, it is suitable for medium and small-scale production.
Twin-Screw Extruder (Optional): Offers superior plasticizing and mixing performance, making it ideal for high-output production and complex material formulations.
B. Corrugation Forming Machine
High-precision modular forming technology ensures uniform corrugation. Vacuum calibration system guarantees optimal pipe wall formation. Optimized track design enhances equipment longevity and reduces maintenance.
C. Cooling System
Water/Air Hybrid Cooling: Water cooling for rapid temperature reduction and air cooling for energy efficiency. Advanced heat exchange design ensures uniform cooling without deformation.
D. Cutting System
Planetary Cutter: Servo-controlled precision cutting with adjustable lengths and clean edges.
Fully Automatic Cutter (Optional): Intelligent operation with automatic counting.
E. Control System
PLC + HMI touchscreen interface for real-time monitoring. Intelligent parameter adjustment ensures stable production quality. Data logging for production management and quality traceability.
Technical Specifications
| Model |
Diameter Range (mm) |
Max. Capacity (kg/h) |
Power Consumption (kW) |
| S-55/30 |
Φ10 - Φ32 |
80 |
40 |
| S-65/30 |
Φ20 - Φ63 |
120 |
55 |
| S-75/33 |
Φ50 - Φ160 |
250 |
85 |
| S-90/33 |
Φ75 - Φ250 |
300 |
110 |
| S-90/33 |
Φ110 - Φ315 |
400 |
130 |
| S-120/33 |
Φ250 - Φ630 |
800 |
300 |
| S-150/33 |
Φ315 - Φ800 |
1100 |
380 |
| S-120/38 |
Φ710 - Φ1200 |
1300 |
480 |
Manufacturer Profile
Qingdao Huashida Machinery Co., Ltd is one of the top manufacturers of plastic extrusion machines in China, specialized in dealing with steel pipe in terms of anticorrosion and insulation technology, R&D of the coating technique, design and manufacture of the equipment for coating, products and materials, researching and development of plastic extrusion equipments, especially of Vacuum Calibrating method PE insulation jacket pipe extrusion line, and PE hollow wall spiral pipe production line, PE PP sheet extrusion line, and pipe joints and welding tools such as heat shrinkable sleeve, Electro fusion sleeve etc.
Up to now, we have successfully entered the oversea markets of Russia, Iran, UAE, India, Belarus, Kazakhstan and so on. Our pipeline production line is nearly 50 sets at home and abroad.
HUASHIDA Factory located in Qingdao High & New Technology Industrial Area - Qingdao Huashida industrial Park, covers an area of about 4000 square meters. We have obtained more than 10 patents and many industry certifications at home and abroad. HUASHIDA company has high qualified and experienced teams for research & designing, manufacturing and site operation.
We have reliable products of different models because of our powerful making capacity. We can satisfy our customer's special need because of our outstanding R&D and design capacity. We can offer our user with timely and convenient technical support because of our perfect after-sales service.
