110-2200mm HDPE Jacket Pipe Extrusion Line for District Heating Chilled Water Pipe
This 110-2200mm HDPE Jacket Pipe Extrusion Line is a high-performance system engineered to produce durable, precision-calibrated HDPE protective casing pipes for PUR (Polyurethane) foam pre-insulated pipe systems used in district heating networks, chilled water distribution, and buried pipeline infrastructure.
Product Overview
Covering the complete 110-2200mm diameter range across 7 standard models, this HDPE jacket pipe production line serves both high-temperature district heating (up to 120°C) and low-temperature chilled water distribution applications. Featuring dust-free planetary cutting technology alongside state-of-the-art vacuum calibration forming, this system eliminates plastic dust and debris during cutting while ensuring casing pipes meet rigorous international standards including EN253, EN14241, and GB/T29047.
By integrating seamlessly into the (HDPE casing + PU foam) district heating and chilled water pre-insulated pipe manufacturing workflow, this extrusion line delivers sustained capacity of 250-1350kg/h while maintaining energy efficiency and dimensional accuracy. The resulting pre-insulated pipe casing features ±0.1mm wall thickness tolerance, smooth internal and external surfaces, superior anti-corrosion properties, and high-precision diameter accuracy.
Product Parameters
| Model |
Main Extruder Model |
Pipe Diameter Range (mm) |
Capacity (kg/h) |
Installed Power (kw) |
Length (m) |
| PE-110/500 |
SJ-75/33 |
110-560 |
250-350 |
160 |
26 |
| PE-655/1380 |
SJ-120/33 |
600-1200 |
700-900 |
480 |
36 |
| PE-960/1860 |
SJ-150/33 |
960-1680 |
1000-1200 |
580 |
45 |
| PE-1155/2200 |
SJ-150/33 |
1155-2000 |
1350 |
650 |
45 |
| PE-315/760 |
SJ-90/33 |
315-760 |
400-600 |
280 |
30 |
| PE-450/960 |
SJ-100/33 |
450-960 |
550-800 |
380 |
33 |
| PE-500/1155 |
SJ-110/33 |
500-1155 |
600-900 |
420 |
35 |
Peak output: 1350kg/h (PE-1155/2200 model) - the highest throughput configuration for large-diameter 1155-2200mm district heating and chilled water pre-insulated pipe casing production.
All parameters are for reference only. They can be selected, matched, or modified according to customer-specific district heating and chilled water pipeline production requirements.
Production Line Composition & Process Flow
As a core component of the (HDPE casing + PU foam) district heating and chilled water pre-insulated pipe production system, this 110-2200mm HDPE jacket pipe extrusion line consists of the following key equipment (all configurations customizable):
- Vacuum Loader - automated PE granule feeding for continuous high-output district heating jacket pipe production
- Hopper Dryer - moisture removal ensuring consistent PE melt quality across the full 110-2200mm diameter range
- High-Efficiency Single Screw Extruder - high-torque output sustaining 250-1350kg/h; compatible with both virgin and recycled PE granules
- Vacuum Calibration Table - precision sizing ring system delivering ±0.1mm wall thickness tolerance and high-precision diameter accuracy
- Water Spraying Tank - multi-stage cooling ensuring structural integrity and dimensional stability

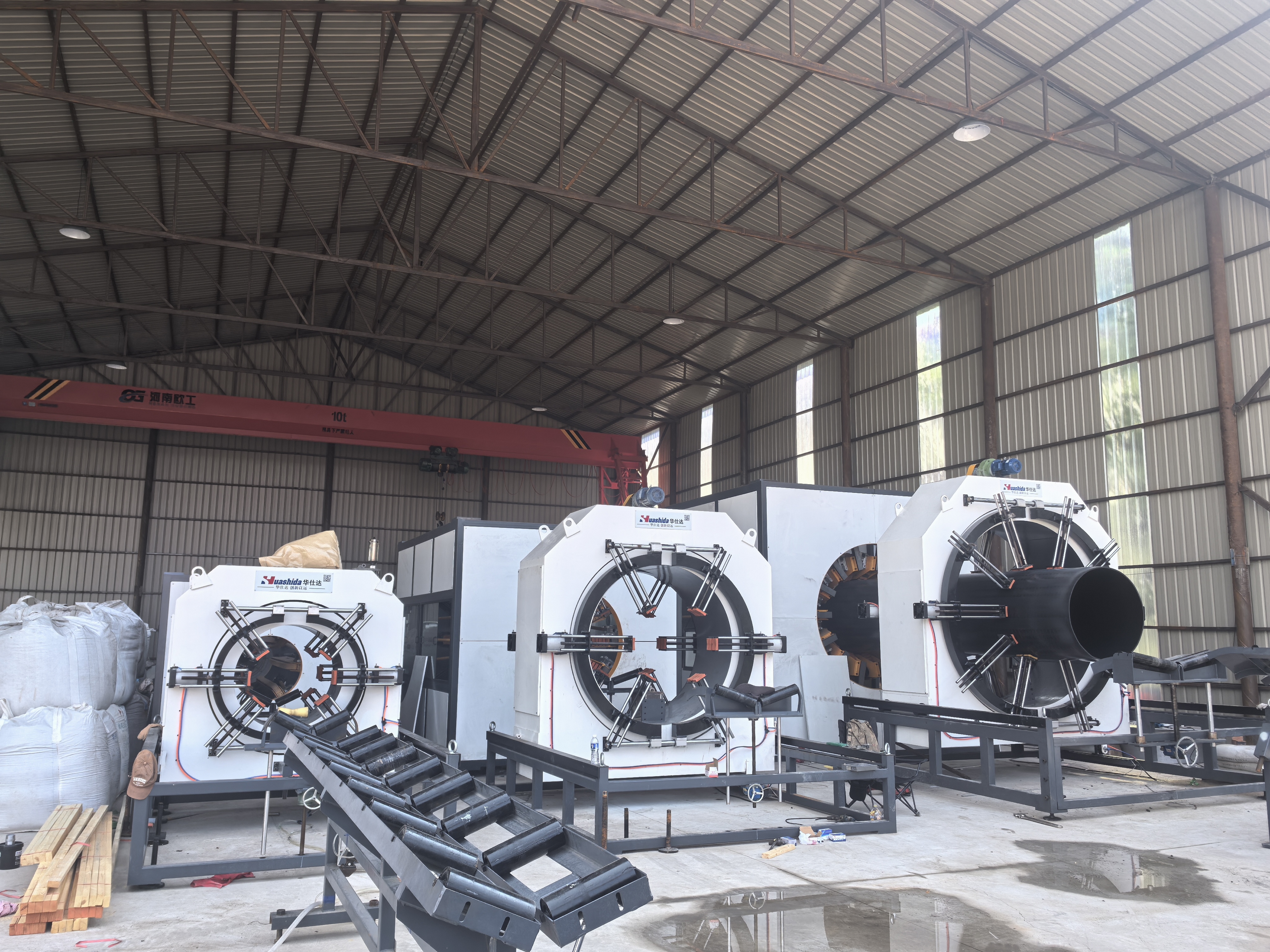

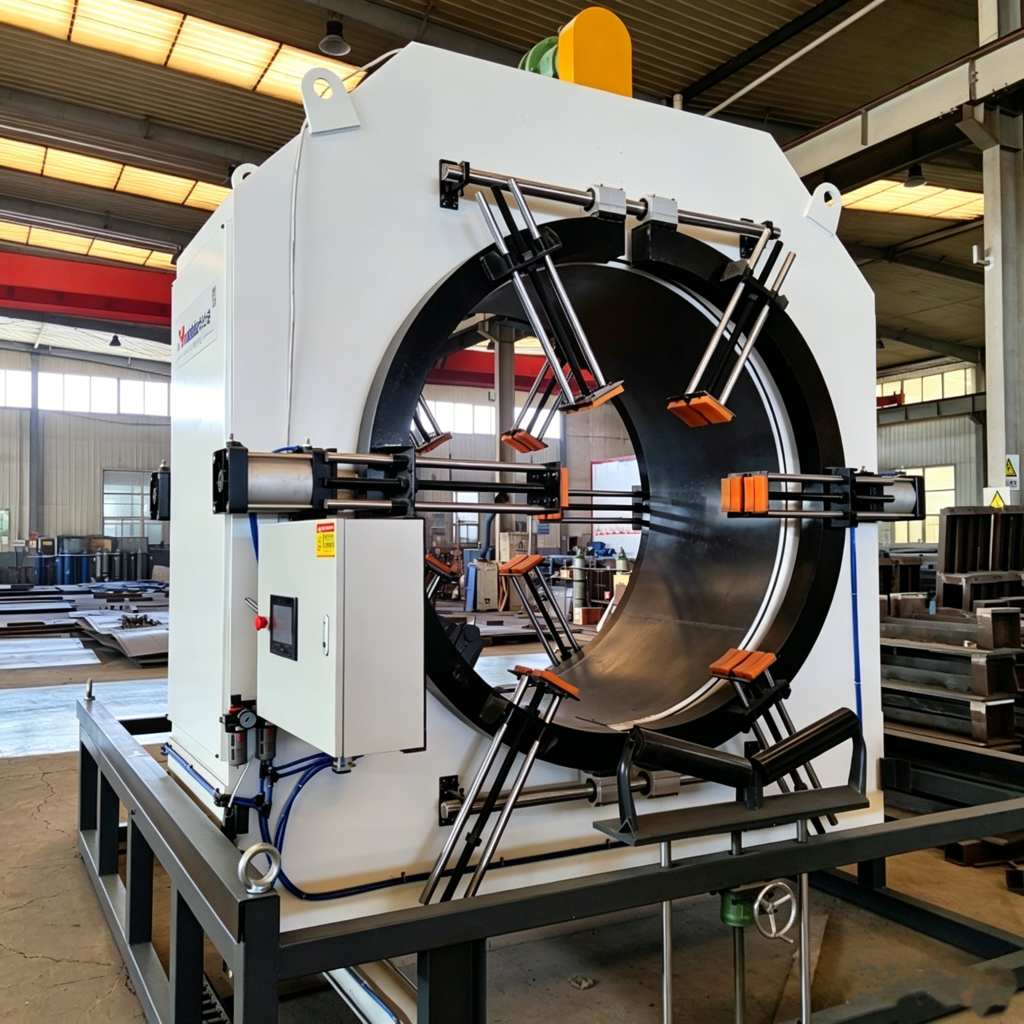

- Hauling Machine - synchronized traction for stable pipe pulling speed across all 7 diameter configurations
- Dust-Free Planetary Cutting Machine - chipless, debris-free HDPE jacket pipe cutting

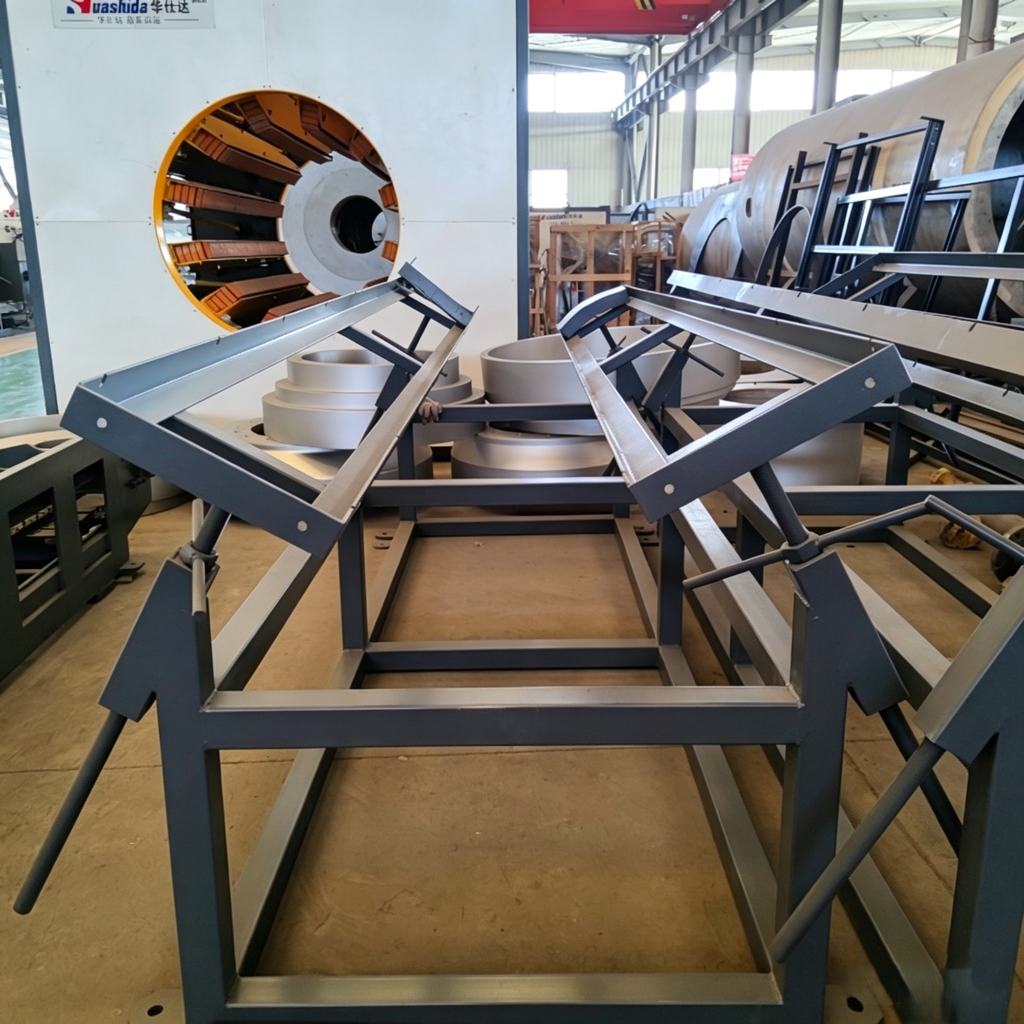

- Discharging Frame - systematic pipe laying-off for storage and transport
HDPE Jacket Production Process Flow
The production process is fully automated, single-operator capable, and optimized for high-output district heating and chilled water pre-insulated pipe casing production:
- Vacuum feeding of PE granules
- Hot air drying
- Extrusion plasticizing
- Mold shaping
- Vacuum sizing/calibration (±0.1mm tolerance)
- Water spray cooling
- Synchronized hauling
- Dust-free planetary cutting
- Carrier laying-off pipe
The one-time forming process eliminates the need for edge trimming - reducing raw material waste, lowering per-unit production costs, and further improving overall extrusion efficiency.
Core Advantages
Equipment Advantages:
- 110-2200mm Full Diameter Coverage: Seven standard models covering small to extra-large HDPE jacket pipe casing production
- 250-1350kg/h High Output Capacity: Sustained throughput across the full diameter spectrum
- Dust-Free Planetary Cutting: Eliminates plastic dust and debris during cutting
- Vacuum Calibration ±0.1mm Tolerance: High-precision vacuum sizing ring system ensures consistent diameter accuracy
- Compact, Flexible Deployment: 26-45m line length suitable for various workshop layouts
- Single Operator Capability: Full automatic PLC control manages the entire extrusion process
- Superior Pre-Insulated Pipe Casing Quality: Smooth surfaces, uniform wall thickness, and precise diameter accuracy
- One-Time Forming - Zero Material Waste: High raw material utilization rate without additional trimming
- Virgin and Recycled PE Compatible: Processes both virgin and recycled PE granules
Service & Technical Advantages:
- One-Stop District Heating and Chilled Water Solution: Full-process services including scheme design, factory layout planning, and operator training
- 389 Sets Installed Worldwide: Extensive proven experience from global deployments
- Professional Engineering Team: 9 senior engineers specializing in dust-free HDPE casing extrusion
- High-End Expert Workstation: China's premier plastic machinery expert workstation
Company Profile
Founded in 2003, Qingdao Huashida Machinery Co., Ltd. is a leading manufacturer with 21 years of professional experience in 110-2200mm HDPE jacket pipe extrusion lines, district heating and chilled water pre-insulated pipe production systems, pipeline anti-corrosion equipment, and plastic pipe extrusion machinery.
Core Strengths: We hold independent design patents and multiple international certifications (ISO9001, ISO14001, ISO45001, CE). Our main products cover 110-2200mm HDPE jacket pipe casing extrusion lines with dust-free planetary cutting capability.
Global Reach: Over 500 sets of our production lines - including 389 HDPE jacket pipe extrusion lines - have been exported to Russia, Kazakhstan, Iran, Nigeria, and 60+ countries worldwide.
Customer Support: We provide fully customized solutions backed by a professional after-sales team offering on-site installation guidance, operator training, and 24-hour online technical support.
